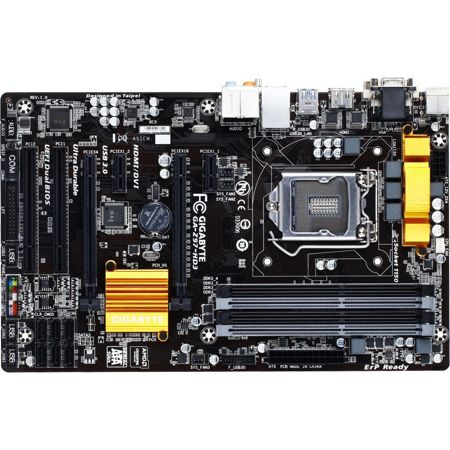

Gigabyte Ultra Durable GA-Z97-HD3 Desktop Motherboard - Intel Z97 Express Chipset - Socket H3 LGA-1150 Item # 940576
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
940576
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
GIGABYTE GA-Z97-HD3 motherboards support the latest Generation Intel Core processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build.
Product Details
| Item # | 940576 |
| Manufacturer # | GAZ97HD3 |
| Number of SATA Interfaces | 6 |
| Number of PS/2 Ports | 1 |
| Hardware Features | Q-Flash, Intel Extreme Memory Profile (XMP) support, On/Off Charge, Intel Smart Response Technology, Fanless Design Heatsink, Ultra Durable, AMD CrossFireX technology support, Intel Rapid Start Technology, Intel Smart Connect Technology, GIGABYTE LAN Optimizer, ESD Protection, GIGABYTE Smart Switch |
| Power Supply Supported | ATX12V |
| Multi GPU Supported | CrossFireX |
| Memory Speed Supported | 3 GHz (O.C.); 2.93 GHz (O.C.); 2.80 GHz (O.C.); 2.67 GHz (O.C.); 2.60 GHz (O.C.); 2.50 GHz (O.C.); 2.40 GHz (O.C.); 2.20 GHz (O.C.); 2.13 GHz (O.C.); 2 GHz (O.C.); 1.87 GHz (O.C.); 1.80 GHz (O.C.); 1.60 GHz; 1.33 GHz |
| Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 |
| Number of Network (RJ-45) Ports | 1 |
| Number of DVI Outputs | 1 |
| BIOS Type | AMI |
| Internal Interfaces | 6 x USB 2.0 - header ¦ 2 x USB 3.0 - header ¦ 1 x audio - header ¦ 1 x SPDIF out - header ¦ 1 x serial - header ¦ 1 x parallel - header |
| Graphics Controller Manufacturer | Intel |
| Onboard Parallel Header | Yes |
| Product Line | Ultra Durable |
| RAID Features | Intel Smart Response Technology |
| Audio Line In | Yes |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - 6 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Number of PCI Express x16 Slots | 2 |
| Total Processor Supported | 1 |
| Total Number of PCI Express Slots | 4 |
| Graphics Memory Accessibility | Shared |
| 64-bit Processing | Yes |
| Bus Clock | 1600 MHz, 1333 MHz, 2800 MHz (O.C.), 2933 MHz (O.C.), 2666 MHz (O.C.), 2600 MHz (O.C.), 2500 MHz (O.C.), 2400 MHz (O.C.), 2200 MHz (O.C.), 2133 MHz (O.C.), 2000 MHz (O.C.), 1866 MHz (O.C.), 1800 MHz (O.C.), 3000 MHz (O.C.) |
| VGA | Yes |
| Max Processors Qty | 1 |
| RAID Supported | Yes |
| brand name | Gigabyte |
| Audio Channels | 7.1 |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection |
| Number of USB 2.0 Ports | 2 |
| PS/2 Port | Yes |
| DVI | Yes |
| Memory Form Factor | DIMM |
| Processor Socket | LGA1150 Socket |
| Chipset Model | Z97 Express |
| Sound Controller Manufacturer | Realtek |
| Onboard Video | CPU Dependent Video |
| PCI Express Standard | PCI Express 3.0; PCI Express 2.0 |
| Number of PCI Slots | 1 |
| Total Number of Onboard USB Ports | 8 |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| RAID Levels | 0; 1; 5; 1+0 |
| HDMI | Yes |
| Processor Supported | Core i7; Core i5; Core i3; Pentium; Celeron |
| BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, Dual BIOS |
| height | 5.2in. |
| Total Number of USB Ports | 6 |
| Number of PCI Express x1 Slots | 2 |
| Onboard Audio Header | Yes |
| width | 12 in |
| Number of Memory Slots | 4 |
| Sound Controller Model | ALC887 |
| depth | 7.5 in |
| Product Name | Ultra Durable 9 Series GA-Z97-HD3 (rev. 1.0) Desktop Motherboard |
| Audio Codec | Realtek ALC887 |
| manufacturer | GIGABYTE Technology, Inc |
| Audio Line Out | Yes |
| weight | 2.58 lb |
| Max Size | 32 GB |
| Maximum Memory | 32 GB |
| Supported RAM Integrity Check | Non-ECC |
| controller type | Serial ATA/600 |
| Number of Onboard USB 2.0 Ports | 6 |
| Number of USB 3.0 Ports | 4 |
| Gigabit Ethernet | Yes |
| Network (RJ-45) | Yes |
| Microphone Port | Yes |
| Onboard Serial Header | Yes |
| Memory Standard | DDR3-3000/PC3-24000 (O.C.); DDR3-2933/PC3-23400 (O.C.); DDR3-2800/PC3-22400 (O.C.); DDR3-2666/PC3-21330 (O.C.); DDR3-2600/PC3-20800 (O.C.); DDR3-2500/PC3-20000 (O.C.); DDR3-2400/PC3-19200 (O.C.); DDR3-2200/PC3-17600 (O.C.); DDR3-2133/PC3-17000 (O.C.); DDR3-2000/PC3-16000 (O.C.); DDR3-1866/PC3-15000 (O.C.); DDR3-1800/PC3-14400 (O.C.); DDR3-1600/PC3-12800; DDR3-1333/PC3-10600 |
| Graphics Memory Technology | DDR3 SDRAM |
| Number of Total Expansion Slots | 6 |
| Chipset Manufacturer | Intel |
| Memory Technology | DDR3 SDRAM |
| form factor | ATX |
| Graphics Controller Memory | 1 GB |
| Number of HDMI Outputs | 1 |
| Number of Onboard USB 3.0 Ports | 2 |
| warranty length | 3-year limited |
| Onboard S/PDIF Header | Yes |
| model name | GA-Z97-HD3 |
| Show More ▾ |
